Cabin Audio PA


Key Specifications:

  • Over 140 minutes of playback duration available.
  • Audio bandwidth in excess of 22kHz, THD less than 0.5%.
  • Fast and convenient track search and playback facility.
  • Programmed to customer requirement.
  • Ergonomic user friendly interface via keypad and alphanumeric display.
  • Display provides mode, track and operating instructions.
  • Display and control illumination will cater for all lighting conditions.
  • Consumes less than 1 watt on 28Vdc supply.
  • Provides 300ohm output drive to customer PA system.
  • Mass is less than 1Kg.
  • Electrical installation simple, requiring minimum aircraft interface.
  • Design inherently safe; system failure will not compromise normal PA operation.
  • Compact single unit mount on bulkhead on 155 x 230mm footprint.
  • Environment resistant enclosure.
  • CAA approval No. SA 01239

Applications:

The cabin audio system is a standalone wall mounted monaural audio player designed to reduce the work load of the cabin crew and reproduce excellent quality messages and in-flight entertainment/boarding music.

Specific applications include playback of customised pre-recorded, possibly multilingual, safety briefings, emergency briefings announcements, and boarding music.

Unlike other cabin audio systems, magnetic tape media is not used in favour of solid state digital recording and playback methods. Benefits of this design feature include a sizeable weight and volume reduction, vastly reduced program search time, improved reliability, and excellent audio quality.

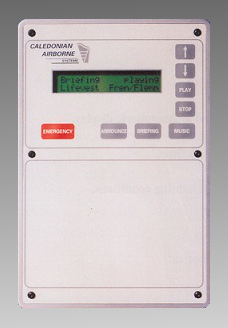

Cabin Audio PA shown in operation.

Each message / briefing / announcement is digitally recorded at Caledonian Airborne Systems. Each program is organised systematically into arrays or sub-groups depending on the form of the content. For example all safety briefings would be grouped under the heading briefings, emergency announcements under the heading emergency and so on. Each sub group is represented by a mode button shown as shown in the image above. All the contents of each mode can be examined or selected via scroll controls; the content or title is indicated by a back lit alphanumeric display.

The number of buttons, control panel layout and operation mode have been designed to be very used friendly. Full familiarity can be achieved in minutes.

System interface with the aircraft has been reduced to an absolute minimum, providing ease of installation.
